Specifications |
| |
Type |
PBH 410 |
PBH 420 |
| |
Inlet / outlet (N1/N2) |
Rp
1" or Rp
1 1/2" |
Rp
1" or Rp
1 1/2" |
| |
Pressure gauge (N3) |
Bushing Rp 1/4" with pressure gauge |
| |
Vent (N4) |
Rp
3/8" NPT with ball valve |
| |
Housing material |
Polypropylene (FDA) |
| |
Support
basket material |
Polypropylene (FDA) |
| |
Housing gasket |
NBR
(other materials optional) |
| |
Max. operat. pressure |
6,5
bar |
6
bar |
| |
Max. operat. temperature |
38°C |
| |
Confirmation |
DGRL
2014/68/EU I Art.4, §3 (PED) |
| |
Filter bag area |
410 |
420 |
| |
Filter bag area |
0,1
m2 |
0,15 m2 |
| |
Overview brochure |
PDF-DOWNLOAD |
|
|
Suitable filter elements: |
|
Brief description:

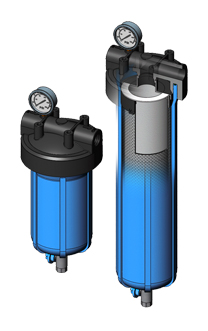

The filter housings of type PBH are made of polypropylene (PP) and comply with FDA regulations. They take a single bag element having a length of 220 mm or 460 mm. The material
is extremely resistant to non-oxidizing acids such as hydrochloric and sulfuric acid up to 70% concentration, as well as to salt solutions, liquid hydrocarbons, alcohols, and
concentrated alkalis. The bags elements consist of a polypropylene needle felt with welded upper sealing collar and handle for quick element change. All PBH filter housings are supplied with pressure gauge,
drain valve and opening key. |
|
