Highlights, you
should not miss
Do not miss any news from the sections:
Digital Filtration, Products, Developments and a Look behind the
Scenes!
Transparency and customer service are very important to us.
We are constantly working to meet the Challenges of changing
Industrial Filtration.
Together with our customers, we are constantly developing pioneering filtration solutions.
Interesting
I Filter meets Cholotate
2022-05-13 |
|
|
|

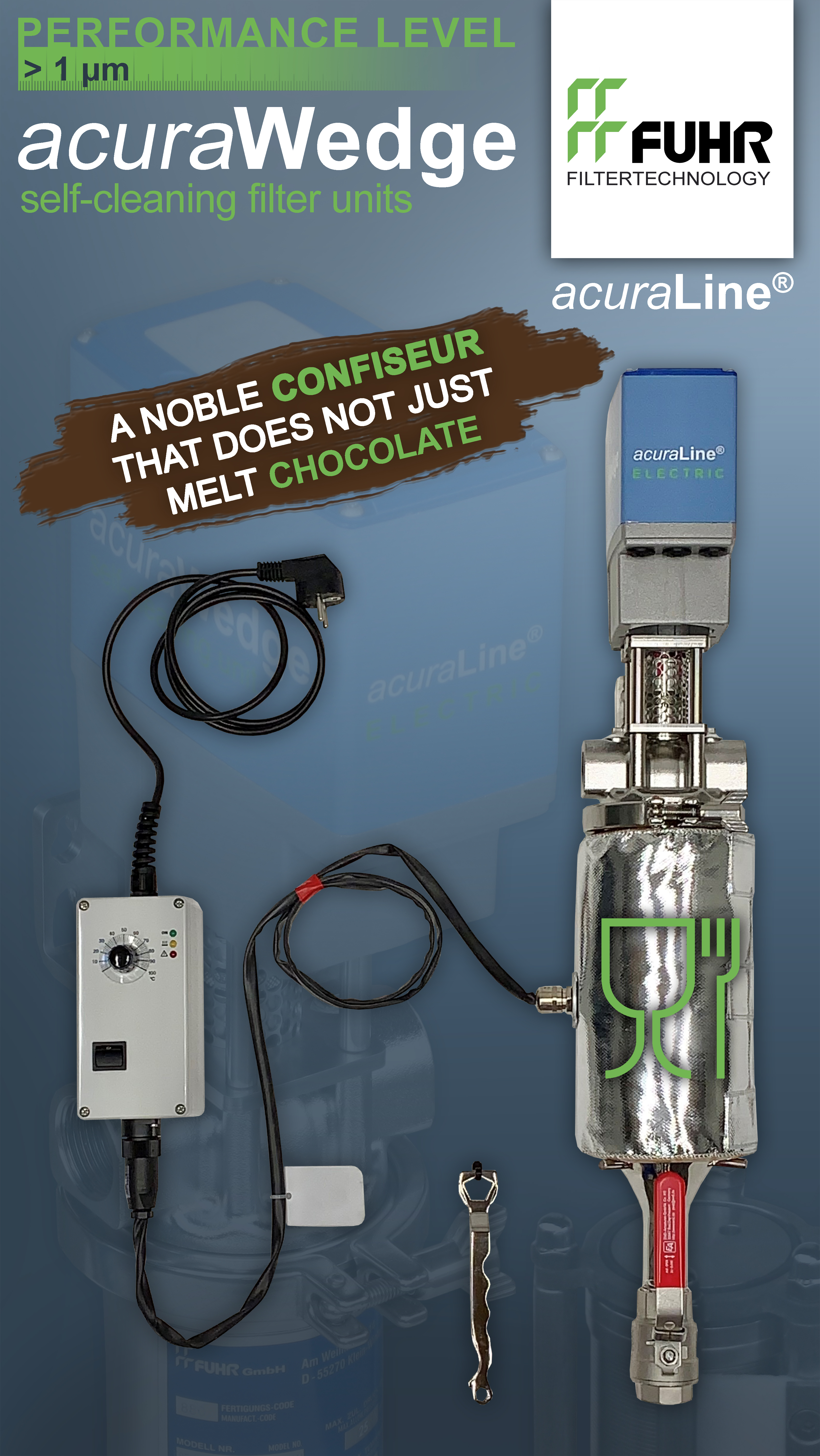

Filter meets Chocolate
Who doesn't want it - the perfect melt-in-your-mouth
chocolate that melts like butter?!
In order for this taste experience to come true, you need not only delicious ingredients but also lots of helping hands and sophisticated technology. In the manufacturing process, many different components such as
cocoa products, types of sugar, fats and
dairy products are processed into a basic mass before it can be refined with
spices and aromas. So that this mass can be further processed
homogeneously and without lumps, it runs through a special filter, among other things. The "raw chocolate" is literally put through the mangle, but this combines optimally on the way to its actual destination. As with a chocolate glaze on pastries, the mass must first be heated so that it can flow at all. For this, the special filter gets a specially designed
heating sleeve with a control unit to set the ideal temperature.
When the basic ingredients are delivered and during processing, it can happen that there are metal parts or stones in the mass. However, these are safely held back and separated by our filter.
We hope you had fun reading it? Now you know, if you bite into the chocolate with relish in the near future, then maybe a Fuhr filter was involved.
Your acuraLine-Team!
#fabrication #food #chocolate #pralines #cacao #howitsmade #filtration #madeingermany |
User
I SMS: "All done - End of
Work"
2020-07-20 |
|
|
|
SMS: „All done – End of Work“
Tuesday afternoon, Norbert clamps the last workpiece in his CNC machining center. It starts the milling process of an aluminum electric motor block and checks whether the other
automatic lathes and machine tools are running smoothly. The processing time of the components is sometimes several hours and some of his small parts systems even have an automatic loading system so that they can continue to produce independently. A
central cooling lubricant preparation system is located in his basement. This is where the contaminated cooling lubricant from many machines converges and is filtered, processed, monitored and made available to the machines in the best quality. This treatment saves money because he can use his
coolant for a very long time and thus actively contributes to environmental protection. After a last tour, Norbert is the last to leave the company premises and begin his well-deserved evening.
It has become evening, Norbert is sitting comfortably on the terrace and takes another look at his smartphone. All of his machines are working smoothly and are now almost complete. The remaining running time of the last workpiece is only a few minutes. Then comes the
SMS that Norbert has been waiting longingly for: "All done - End of Work". He sends an SMS to his networked process control center with the command: "Close". With this command, all machining centers switch off automatically and initiate the
energy-saving mode of the cooling lubricant system. This now only circulates the cooling medium at intervals so that there is no contamination due to a standstill. Finally, he receives a confirmation SMS: "Finished". Now Norbert knows that all of his systems are safe without having to go back into operation.
In addition to the qualitative aspect of fluid management, machine controls and
intelligent monitoring are essential for economical and ecological operation in times of industrial change. Whether a central or decentralized
automation concept is necessary always depends on the local and strategic decisions.
This is an advertisement from the area: Digital
+
With the acuraControl v2 dashboard, automated filter units can be specifically monitored using intelligent sensors. This also makes fault diagnosis easier and helps to design better maintenance processes.
In addition to the control panel in the control cabinet, any commercially available mobile device or PC with an
intranet or cloud-based solution can be used to communicate with the filter unit. With an integrated
gateway, an email or an SMS can be sent if necessary.
Your acuraLine-Team!
#kss #coolant #process automation #digital #industry #networking #work safety #cloud #gateway #sms #filter technology #ethernet #ip #modbus #profinet #sps |
New development
I acuraWedge
goes into series production
2020-02-26 |
|
|
|

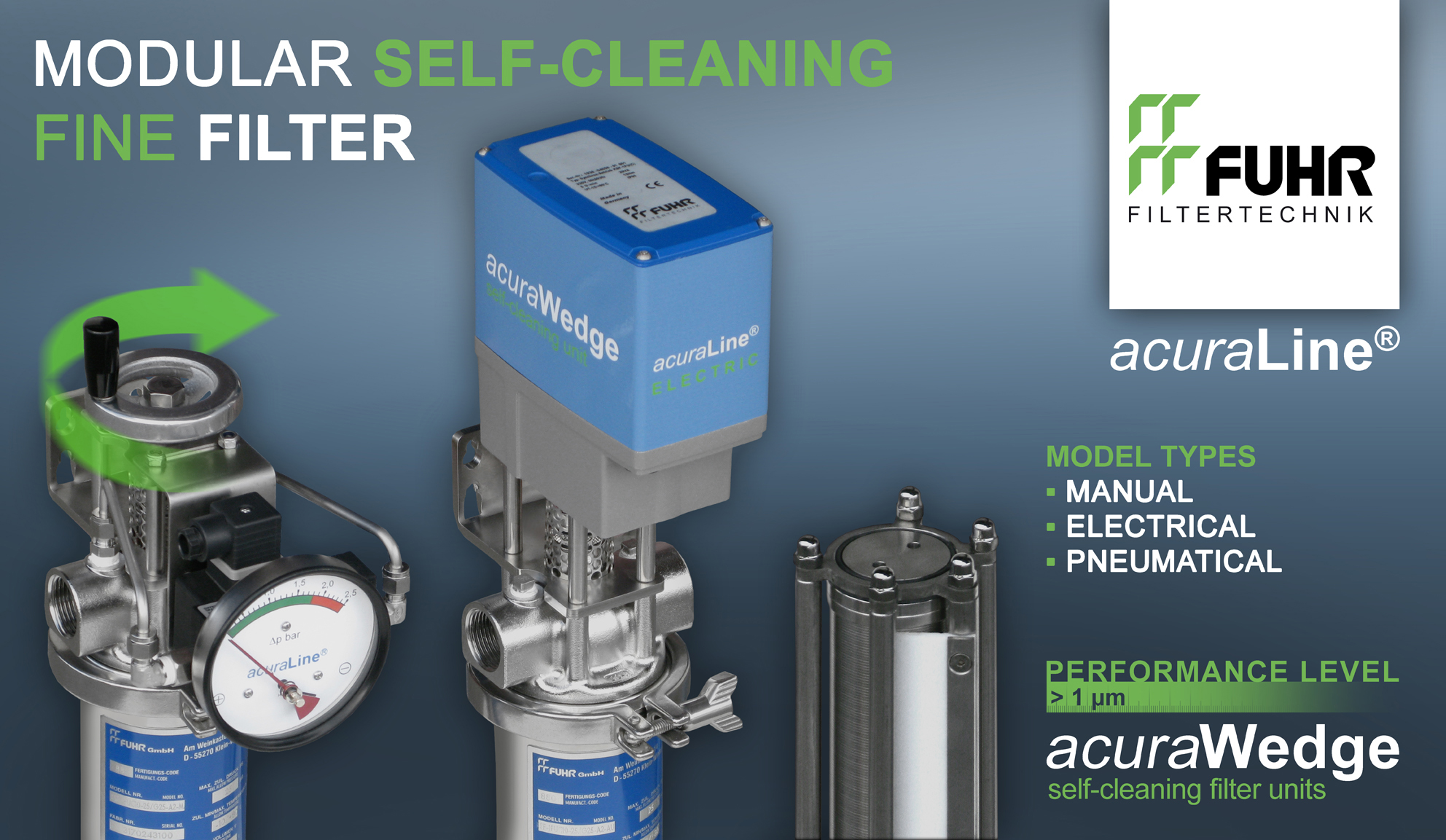

acuraWedge goes into series production
The modular self-cleaning filter with a filter micron rate of up to 1 µm goes into series production. The heart of this filter
unit consists of a stainless steel wedge wire filter for filter
micron rates from 50 to 3000 µm or a revolutionary sintered filter element
for an absolute filter micron rate of 1 µm.
The drive variants are freely selectable: manual,
electrical and pneumatic.
Your acuraLine-Team!
#automaticfilter #self-cleaning #filtertechnic #zeromicroplastic |
New development
I Power Plant Filter
2019-11-20 |
|
|
|

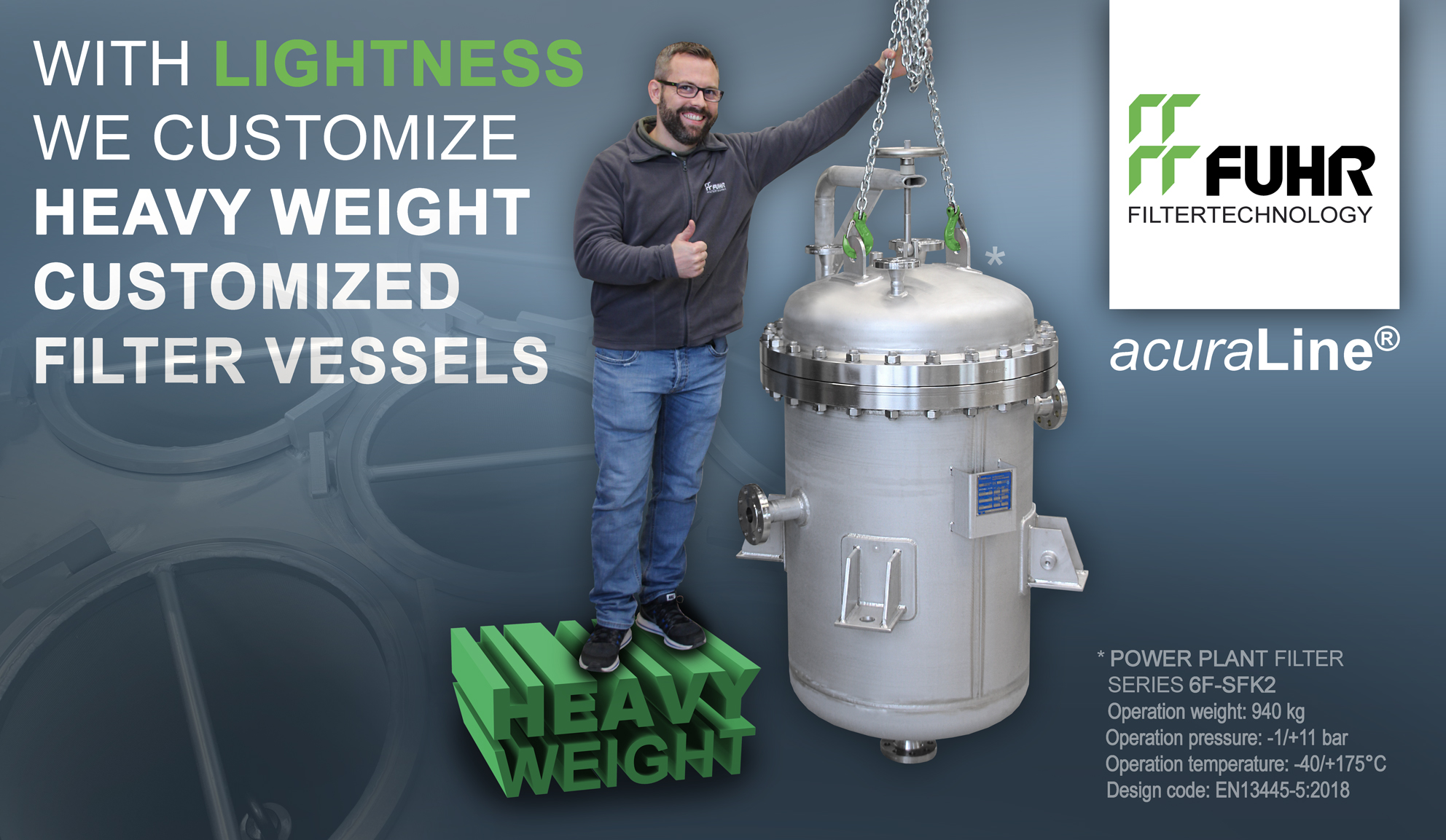

Power Plant Filter
Last week, two heavy-duty power plant filters with passive
magnetic separation left our production line.
The basis of interpretation in this case was the EN standard (EN13445-5: 2018). Since these
vessels have very many additional loads, e.g. earthquake, snow and wind loads, we could not calculate these
vessels conventionally, but had to design the finite element method with a special software.
The final acceptance and design examination was carried out together with
TÜV Hessen.
Your acuraLine-Team!
#finiteelemente #kraftwerk #filtertechnic #magnetfilter |
New development
I acuraCube - Filtration
Container
2019-09-24 |
|
|
|

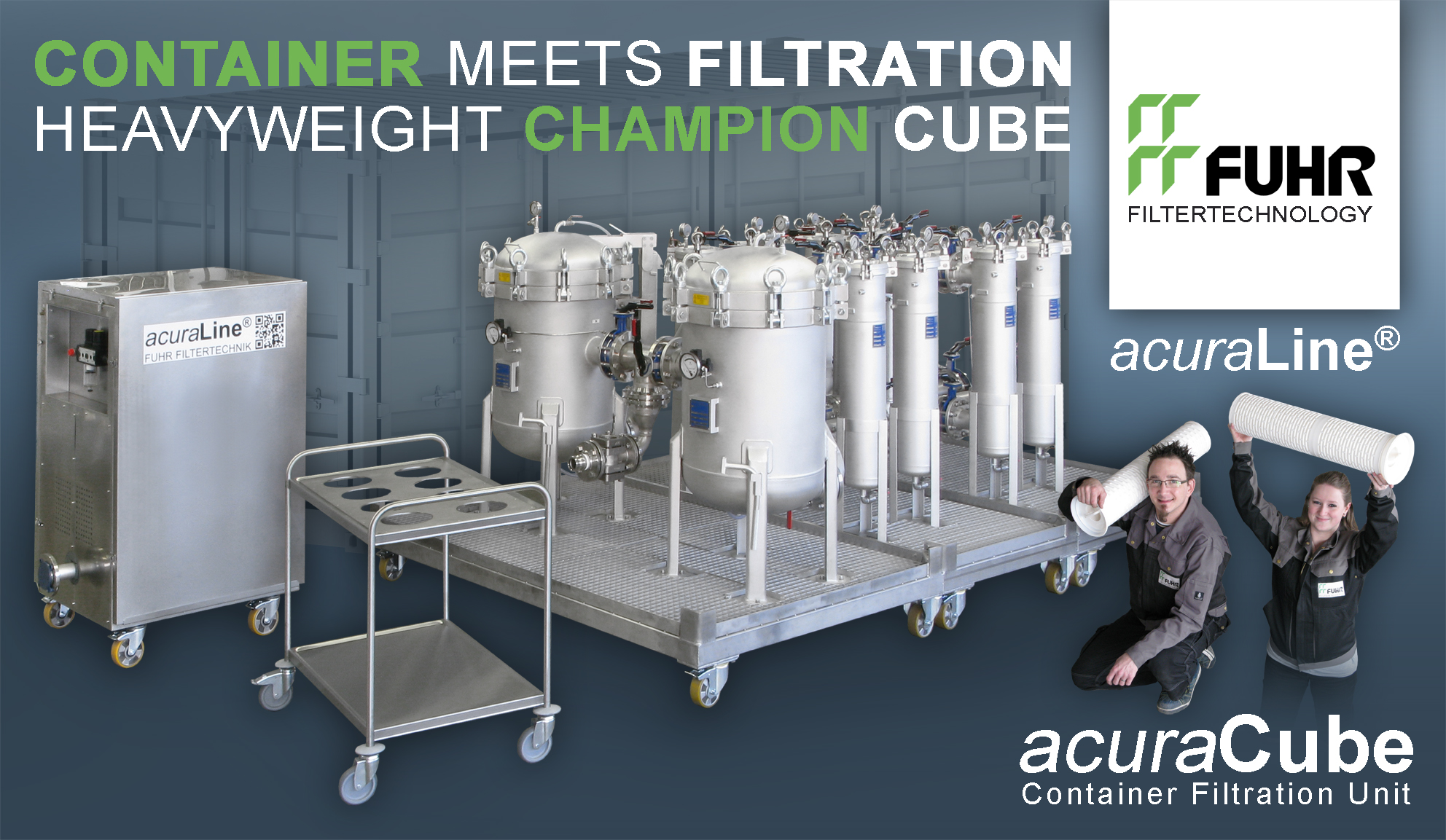

acuraCube - Filtration Container
A true heavyweight with a total of 6 tons of concentrated filtration power and
2-stage filtration with a total filter area of 96 m²;

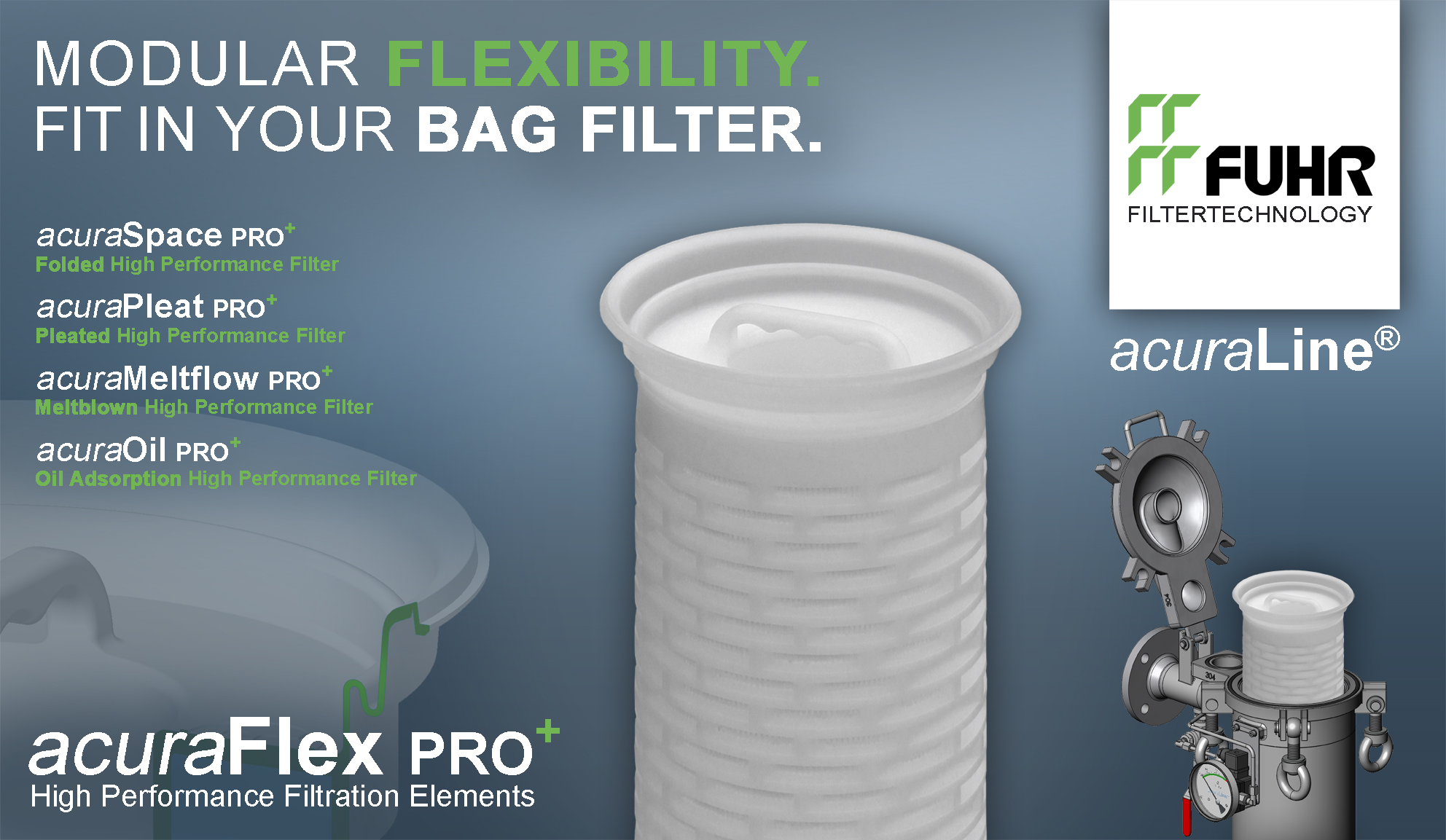

no problem thanks to acuraFlex PRO + high-performance elements.
A mobile, self-priming pump in the soundproofing cabinet and draining trolleys complete the package.
The acuraCube operate safely with
PLC control and our digital acuraControl.
A LED-light unit and a drying with heating unit ensures a maximum of
comfort.
Your acuraLine-Team!
#heavyweight #filtration #madeingermany #innovation #digital #fourpointzero #industry #sps #control #container #service |
Developing
& Researching
I acuraWedge
self-cleaning filter units
2019-08-08 |
|
|
|
FUHR researches - acuraWedge
self-cleaning
Fuhr GmbH Filtertechnology presents at this year's
parts2clean 2019 the new acuraWedge self-cleaning filter series. With the new development of the series acuraWedge we set new standards in the field of
self-cleaning filters. The basis for this development is the patented and proven cartridge filter housing series 1FU (screw cap) and the series 1FUC (with quick
closure).
During the conversion from the cartridge filter to the automatic filter, we modified the casting of the filter head to create a connection between the drive and the
wedge wire filter.
We are also setting new standards in terms of dead space and flow design.
Modularity and flexibility are consistently implemented in this new series as usual.
Stress analysis and tests (R&D department acuraLab)
Principle 3x2 Prinzip (3x Series 1FU / 3x Series 1FUC):
acuraWedge KSF-1FU(C)-MA
Wedge wire filter with screw cap or
quick closure with handwheel Manual cleaning of the can by hand, optionally with differential pressure gauge DFA
acuraWedge
KSF-1FU(C)-AU
Wedge wire filter with screw cap or quick closure with
electric synchronous drive permanent cleaning of the can, optionally with differential pressure
monitoring DFA or acuraControl; Timing of the drain as a function of the differential pressure; Standby circuit of the engine at low differential pressure
acuraWedge
KSF-1FU(C)-PN
Wedge wire filter filter with screw cap or
quick closure with horizontal pneumatic cylinder permanent cleaning of the can, optionally with differential pressure gauge DFA or acuraControl; Timing of the drain as a function of the differential pressure; Standby circuit of the drive at low differential pressure
The free choice of closure allows use in very many areas of industry, since all common
sealing materials can be selected, e.g. NBR, EPDM, FPM, FEP-O-SEAL, core FPM, FFKM, GYLON blue.
The shaft seal of the drive is not done with a stuffing box packing, but with a low-maintenance
3D piston rod seal. This eliminates annoying readjustments to ensure optimum tightness.
Just as revolutionary is a novel sintered filter element, which guarantees a
crystal-clear filtration of 1 μm absolutely. However, this sintered element can only be charged with particles> 25 μm. The maximum flow at 100 μm is 2 m³ / h and at 1 μm up to 1 m³ / h in relation to water.
Flow rate test for optimal particle retention
The parameters and standards:
Connection: Rp 1 "(IG) DIN 2999
Pressure: 25 bar
Temperature standard: -10/+80°C
Temperature special: -10/+160°C
Supply voltage KSF-1FU (C): 230 V 50 Hz
Protection class KSF-1FU (C): IP65
Material: 1.4301 or 1.4401
Filter micron rates standard: 25, 50, 75, 100, 125, 150 μm
Filter micron rates special grade: 1 μm for crystal-clear filtration, but only for particles larger than 25 μm
Overall length: standard and half length
Scraper: Stainless steel or PTFE compound wiper (FDA-compliant)
Design: industry standard dead space free or pharmaceutical grade
We offer the following extensions:
- welded connections such as V-flange, milk tube, tri-clamp, weld-on end, camlock, and much more.
- Holder for quick release clamp (series 1FUC)
- Heating jacket for thermal oil, hot water, steam, saturated steam heating
- Electric heating sleeve with ballast
- Synchronous drive with higher torque
for highly viscous media> 10,000 mPas
- Timer drain valve
- Differential pressure measurement DFA
- Digital filter monitoring acuraControl
- Standby operation of the drive with differential pressure measurement DFA and adjustable time relay
Your acuraLine-Team!
#automaticfilter #industry #rheinmain #researching #wedgewire #filtration #rheinhessen
|
Digital Filtration
I acuraControl
v2
2019-07-23 |
|
|
|
Next Generation - acuraControl v2
For more than 2 years, the innovative filter management system acuraControl
has been used in the monitoring and control of filter housings and / or complex filtration systems.
The range of applications is wide-ranging due to the high degree of
modularity and
flexibility.
In close cooperation with our customers, test institutes and our acuraLab research and development department,
the digital acuraControl is constantly being further developed and regularly updated. By default, the user has access to a very detailed
program which, however, can usually be replaced by a custom software at no extra cost. In addition to the common world languages, almost any language can be added.
With the current refresh, the acuraControl v2 receives a USB port in addition to the network connection
in order to be able to conveniently export data protocols (statistics / batch records)
in addition to the LAN or WIFI connection via USB stick.
The new interface can also be used for the connection of a printer as well as update import.
Technological developments require a strong and reliable team.
In order to maintain and expand the high level of customer satisfaction, we have expanded our team and would like to
welcome Christian Wolfschütz to our research and development department acuraLab.
Your acuraLine-Team!
#industryfourpointzero #industry #rheinmain #science #4point0 #filtration #rheinhessen
|
Digital
Filtration I Complete filter system with acuraControl
2019-02-22 |
|
|
|
Complete filter system
with acuraControl
With ease we develop complex and digital filter systems according to your wishes.
Your acuraLine-Team!
#automation #industry #bagfiltration #precisionmachining #4point0 #filtration #teamwork
|
Special solutions

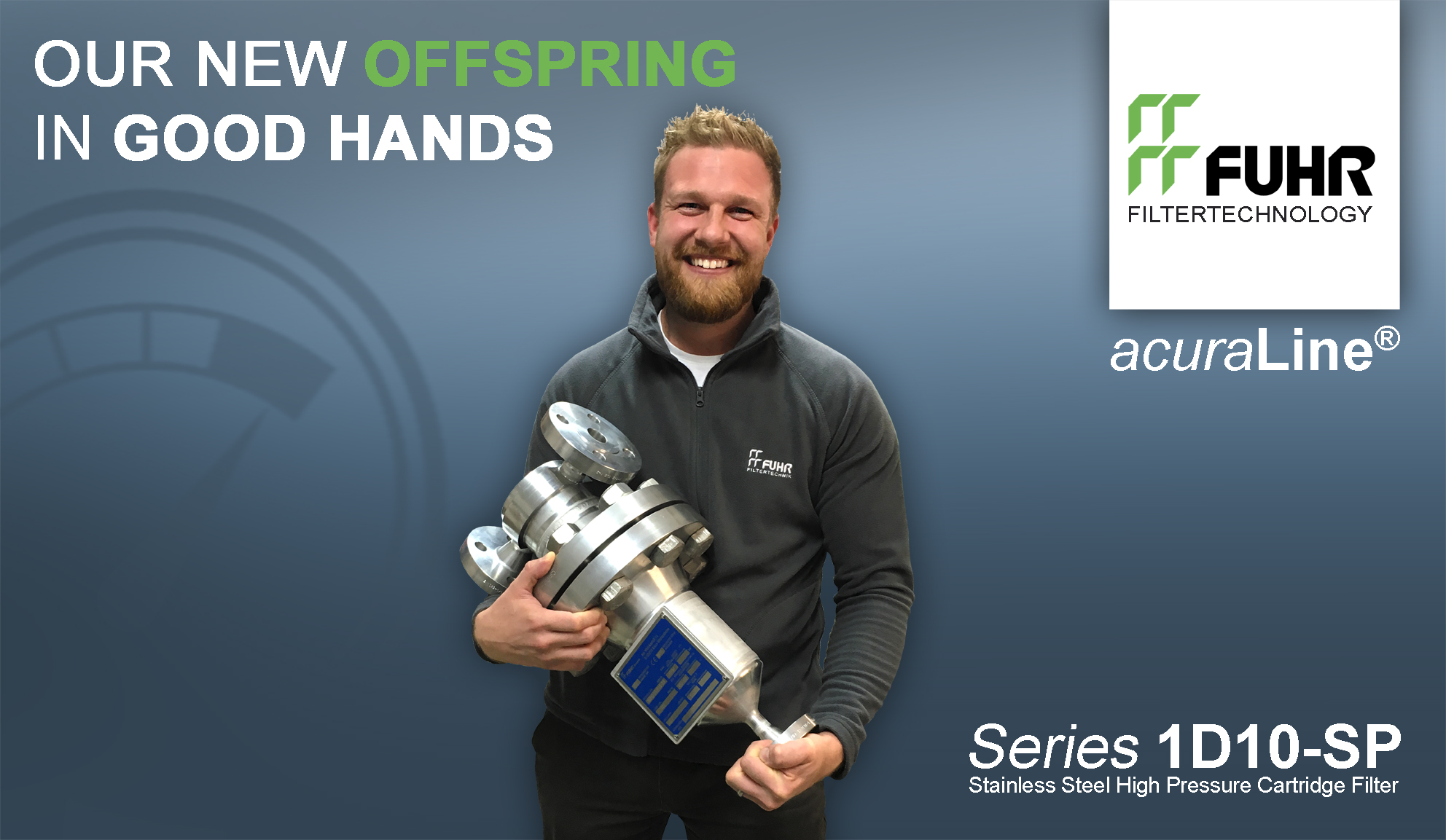

I High pressure filter solutions
2019-02-20 |
|
|
|

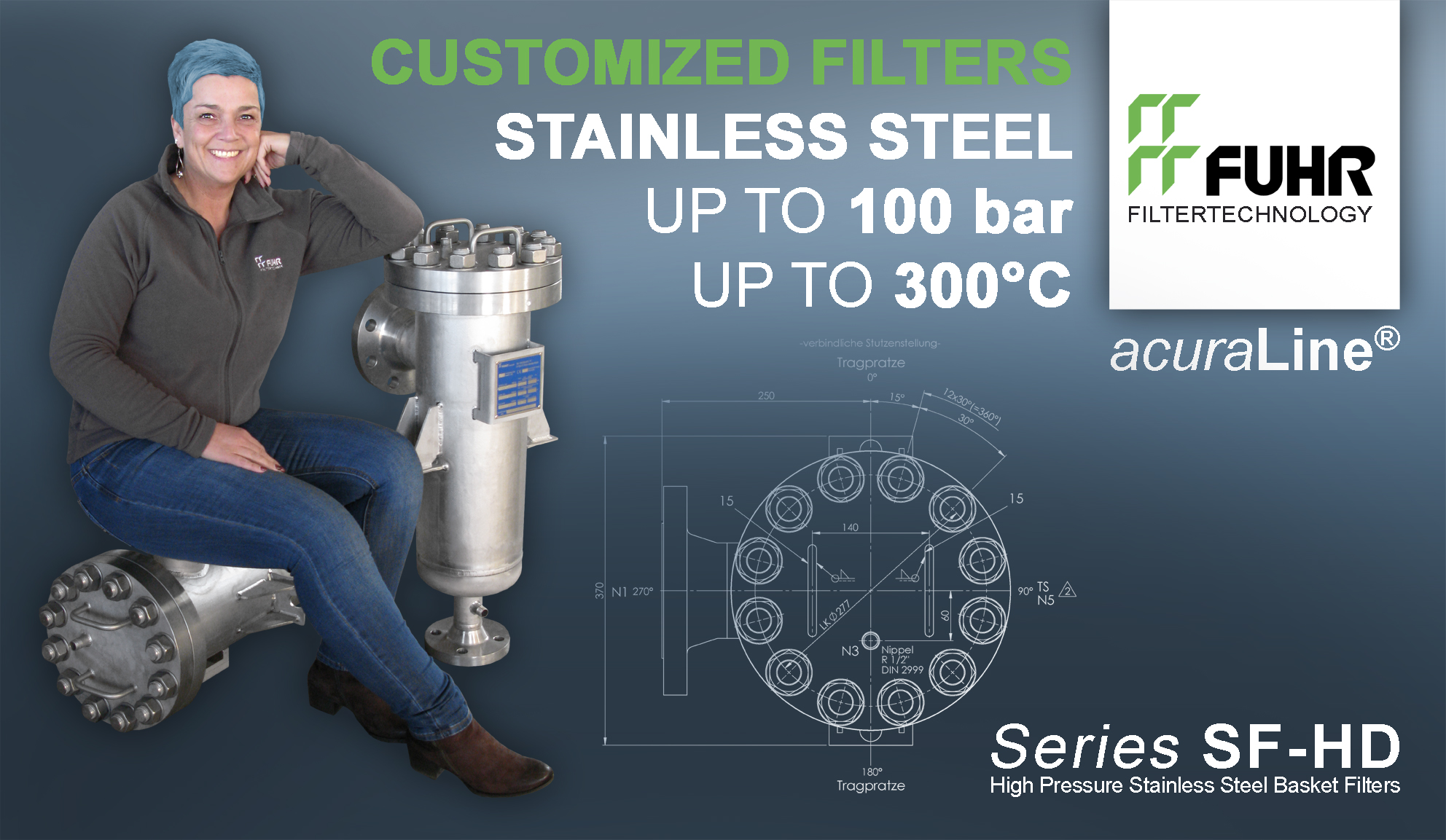

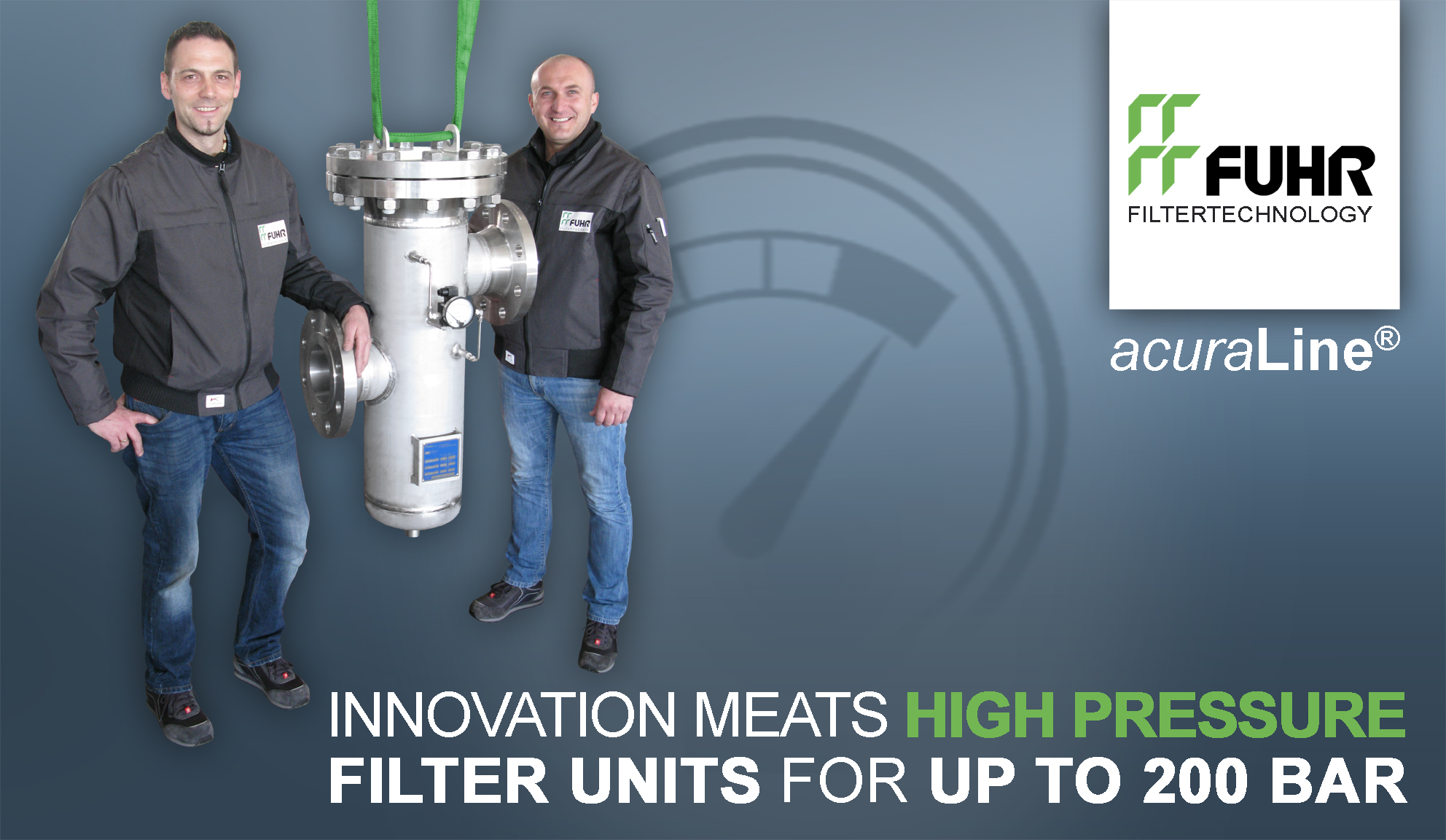

High pressure filter solutions
Fuhr Filtertechnik has been developing highly specialized filtration solutions in the
chemical industry for decades.
The parameters: pressure, temperature and state of aggregation as well as the material of the filter housing can be freely determined by our customers.
Your acuraLine-Team!
#highpressure #specialconstruction #stainlesssteelhousing #filterhousing #ped #filtration #sievebasket |
Look behind the scenes I A strong connection
2018-11-26 |
|
|
|
Look behind the scenes
Individual and complex solutions can only be guaranteed by the perfect cooperation of our entire team.
Innovation, team spirit and commitment characterize us. For almost a month, our final assembly has been successfully supported by
Sergej Miller.
We are pleased to welcome him in our team!
Your acuraLine-Team!
#teamspirit #assembly #stainlesssteelhousing #filtersystems #acuraline #filtration #rheinhessen |
Products
I In good hands
2018-10-31 |
|
|
|
In good hands
We are constantly working with HIGH PRESSURE on new developments and processes in liquid filtration.
With pleasure and attention to detail we manufacture individual solutions for you. Here is one law:
NOTHING IS IMPOSSIBLE..
Your acuraLine-Team!
#filtration #highpressure #sterile #pharma #processengineering #fda #food #rheinhessen #rheinmain #innovation |
Digital
Filtration I Smart digitized bottling
2018-08-29 |
|
|
|
Smart digitized bottling
It's that time again. With this milestone, Fuhr Filtertechnik presents its latest #advertising in the field of
sterile filling.
This pump filter system from the sector #filtersystems is used for filling high-viscosity media.
The nearly dead-space-free sterile filter system is modular, adaptable and expandable designed to fill small bottles
as well as large containers with different viscosities. In addition to the filter core, a series 5DB
stainless steel sterile filter cartridge housing,
the system is continuously driven by a self-priming eccentric screw pump.
The smart unit is controlled and monitored by means of acuraControl and a Siemens S7.
By means of an integrated wifi router, the status page of the system can be conveniently visualized on a
control room or a smartphone.
This increases process reliability to a maximum and ensures smooth operation.
Your acuraLine-Team!
#filtration #automation #sterile #pharma #processengineering #fda #food #bottling #rheinmain #digital |
Products
I You decide where to go
2018-08-03 |
|
|
|

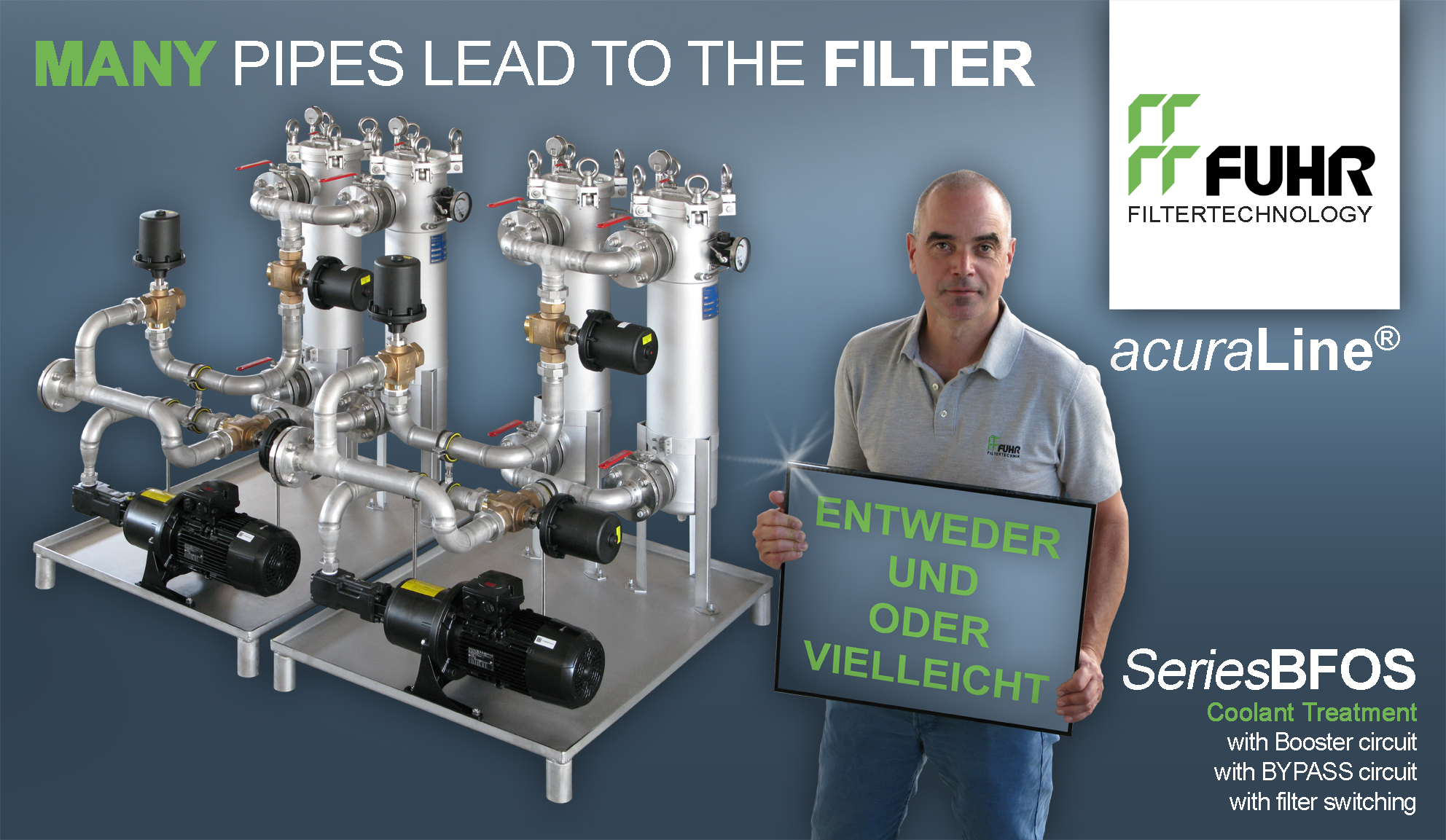

You decide where to go
A coolant processing plant that leaves out no option. The right circuit for every situation. Thanks to overpressure valves, measuring and control technology, there are no wishes left in terms of safety.
Your acuraLine-Team!
#filtration #automation #industry #kcoolant #processengineering #aviation #rheinmain #madeingermany |
New development
I acuraMotion - automatic lid lowering
2018-06-28 |
|
|
|

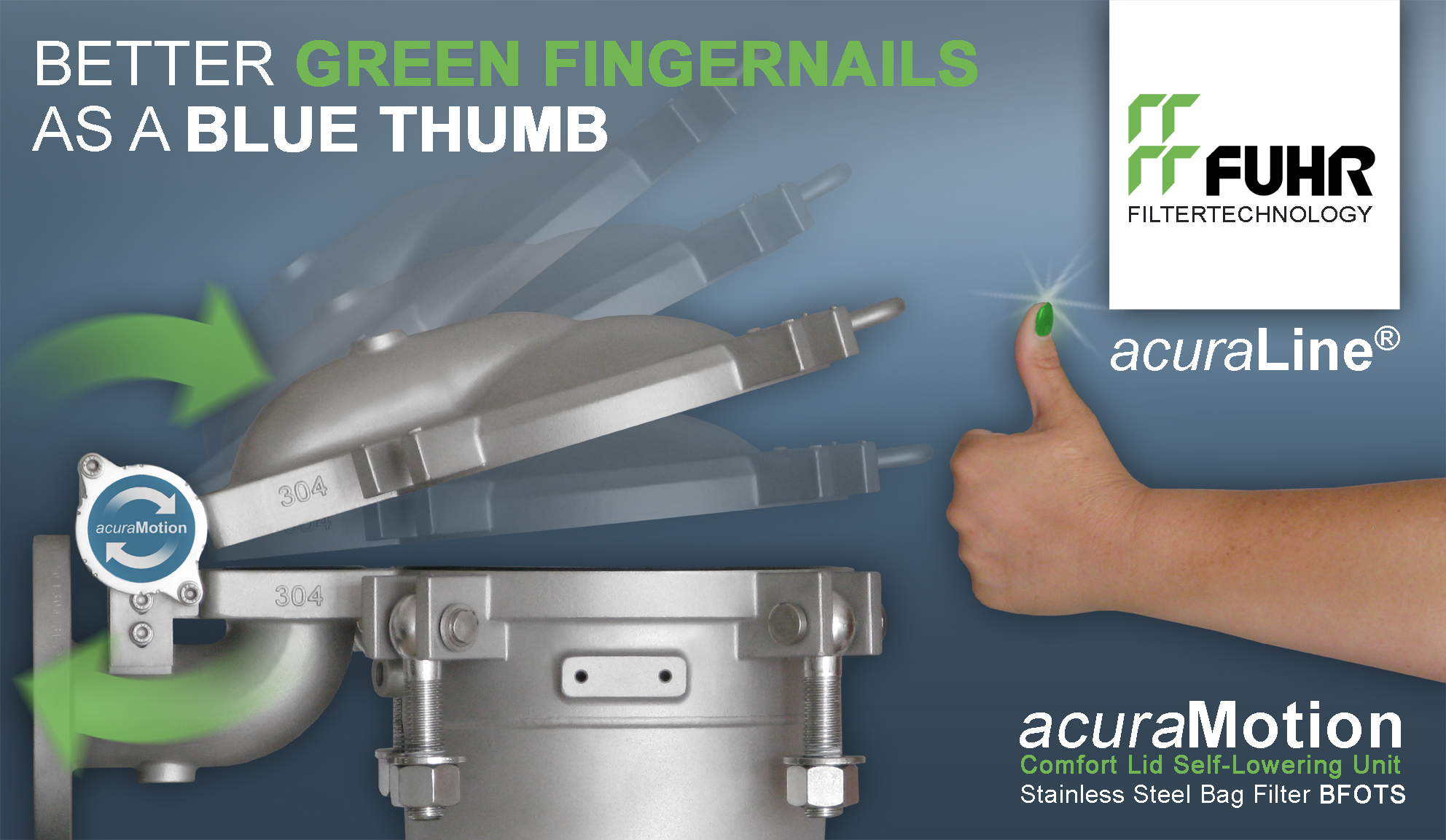

acuraMotion -
automatic lid lowering
Our comfort automatic lid lowering for our proven
premium stainless steel
bag filter housing series BFOTS. This extension increases
occupational
safety and comfort. A falling down or slamming of the lid is no longer possible.
Your acuraLine-Team!
#newdevelopment #worksafety #industry #extension #processengineering #safety #madeingermany |
Development
I If the standard no longer fits
2018-05-25 |
|
|
|
If the standard no longer fits
Special requirements require special solutions. In addition to our numerous series filter housings, we manufacture
individual special vessels according to customer requirements.
Parameters such as material, temperature, pressure, connections and nozzle orientation can be customized.
We realize tanks with connections from DN15 to DN350 for flows of
up to 1000 m³/h. The operating pressure is also a matter of
interpretation and is not a limit.
In the standard range, we manufacture containers for up to 100 bar and a maximum operating temperature of up to
300 °C.
Your acuraLine-Team!
#industry #filtration #bottling #production #madeingermany #rheinhessen #rheinmain
|
Products
I Heated filter systems for viscousand highly viscous fluids
2018-05-07 |
|
|
|
Heated filter systems for viscousand highly viscous fluids
Many media first need to be heated up to start flowing or to reach the desired
processing temperature.
Our filter housings can be heated either electrically, with steam, with
hot water or with thermal oil.
Such heated filter systems are used in plastics production, grease and oil processing, paint and varnish production,
food and beverage industry. All our stainless steel filter housings can be inexpensively equipped with a heating jacket before commissioning.
Your acuraLine-Team!
#heated #viscosity #oil #fat #foods #paints #heatingjacket
|
New development
I acuraPreventor Digital Lid Detection
2018-05-03 |
|
|
|
acuraPreventor
Digital Lid Detection
Industrial processes are constantly changing. Process reliability in conjunction with digitized innovations are the logical complement here.
Thanks to the new digital cover detection acuraPreventor, this useful function can be retrofitted to our proven stainless steel bag filter housing of the
BFOS series.
In the event of unintentional opening of the housing lid, the operation of the complete system can be interrupted in order to prevent overflowing, scalding or fouling.
Likewise, the housing must first be completely closed in order to start the complete system. This product is
compatible with our intelligent filter management system
acuraControl.
Your acuraLine-Team!
#processsafety #industryfourpointzero #digital #innovation #filtrationtechnology #bagfilter #industry #madeingermany #news #fluidmanagement
|
New development
I Multiplication made easy, processes made safe
2018-03-26 |
|
|
|
Multiplication made easy, processes made safe
No problem with the proven stainless steel filter housing of the
1FUC series.
This all-rounder impresses with its modular design and has been supplemented with the 1FUC
clip holder as in this example to ensure an easy-to-use insert.
The cascaded design of the system allows a special type of filtration in 5 stages.
A rinsing cycle helps with the cleaning of the retentate, which has settled on the filter cartridge and can be removed via the emptying.
Your acuraLine-Team!
#modular #filtercartridge #innovation ##filtrationtechnology #industry #madeingermany #news |
New development
I acuraCube - Filtration
Container
2018-03-06 |
|
|
|
acuraCube - Filtration Container
A true heavyweight with a total of 4 tons of concentrated filtration power and
3-stage filtration with a total filter area of 120 m²;
no problem thanks to acuraFlex PRO + high-performance elements.
A mobile, self-priming pump in the soundproofing cabinet and draining trolleys complete the package.
The acuraCube can be safely operated by means of
PLC control and our digital acuraControl.
Your acuraLine-Team!
#heavyweight #filtration #madeingermany #innovation #digital #fourpointzero #industry #sps #control #container #service |
New development
I BFOSHighGloss
2018-01-25 |
|
|
|
BFOSHighGloss -
Sterile bag filter housing
Our new bag filter housing BFOSHighGloss is here! Created for
sterile and highly accurate processes.
With a surface roughness of less than Ra <0.8 μm, this housing is perfectly cleanable and
sterilizable.
Your acuraLine-Team!
#cosmetics #pharma #sterile #highgloss #inks #foods #whine #beer #innovation #rheinmain #rheinhessen #industry #filtration |
Digital
Filtration
I Top Filtration - Fit for the future
2017-12-13 |
|
|
|
Top filtration - Fit for the future
Keep your process under control at all times. Thanks to
acuraControl no problem.
Whether as a self-sufficient measuring instrument or
networked via WLAN, you can query the status of your filter at any time and thus have more time for more important things.
acuraControl grows with its process and can also be updated later on and expanded as required.
Your acuraLine-Team!
#mainz #rheinhessen #news #rheinmain #industry40 #4point0 #fourpointzero #filtration #development #environmentalism #monitoring #hydraulics #foodandbeverage #healthcare
#process #technics #fluids #gogreen #measuring #pressure #temperature #wifi #wlan #www #madeingermany |
Products
I precision in detail
2017-10-05 |
|
|
|
Precision in detail
Sterile and highly accurate processes require equally perfect and coordinated filtration solutions.
With multi-layered stainless steel wire mesh, we equip high-tech systems with individual and custom-fit filtration solutions.
Our filters convert gases into high-purity gases with a fineness of <0.1 μm.
Such filters are used in the #Pharmacy, #Chemistry, #Petrochemical,
Optical Industry (#Optics), and many areas of the
#food / # beverage industry (#FDA).
With our digital measuring device acuraControl, we can reliably measure extremely low differential pressures of just 1 mbar in
ultra-pure gas filter systems with increasing contamination.
Commercially available differential pressure gauges with optical displays can not represent these very subtle differences, and therefore are not required for
precision measurement.
Your acuraLine-Team!
#pharma #chemistry #petrochemistry #optics #foods #beverageindustry #fda |
Look behind the scenes
I Production and Logistics Hall 4
2017-08-17 |
|
|
|
Celebrate opening
Production and Logistics Hall 4
As part of this year's summer party, we inaugurated our
production and logistics hall 4 (with an additional 200 EURO pallet spaces).
With this future-oriented expansion, we can respond even better to the increased needs of our customers.
A clear decision for our location in the heart of the Rhein-Main area. This year's festival took place under the motto "acuraVeggie".
Fresh salads, oriental soup, grilled cheese, corn on the cob and lots of other treats rounded off the event.
We also officially welcomed our new mechanic Alexander Schneider in a big round, who recently supported us in the
final assembly.
Your acuraLine-Team!
#rheinmain #kleinwinternheim #industry #business #vfourpointzero #topemployer #vegetarian #summerparty#mainz #filtrationtechnology |
Products
I Maximum filtration
2017-08-14 |
|
|
|
Maximum filtration
With our acuraFlex PRO + elements, every
#bagfilter becomes a stamina filter. Maximum lifetime and
100% flexibility guaranteed.
With only one element of the size 2, the #filterarea can be increased 12 times. Choose your endurance filter from 4 different types.
Your acuraLine-Team!
#innovation #Innovation #industry #development #filterbags #highperformance #performance #filtrationtechnology
|
Filter systems
I Wellness for your fluids
2017-06-01 |
|
|
|
Wellness for your fluids
Fine filter systems are used in the #processing and care of
#cooling lubricant (#KSS) and mineral and synthetic #oil in many areas of the
#industry.
Through a permanent circulation of #fluid and #finestfiltration the service life is extended to a maximum and this
protects the environment and reduces annoying downtime and production losses.
Your acuraLine-Team!
#filtrationsystem #kss #oil #development #modulefilter #microfilter #performance #environmentalism
|
Products
I High-pressure filter systems
2017-03-28 |
|
|
|
High-pressure filter systems
Fuhr Filtertechnik manufactures #Stainless steel #high pressure filters for various sectors of the
#industry according to customer requirements.
The following rules according to. PED 2014/68 / EU applies: AD-2000; DIN EN 13445-5; ASME Div.1 We look forward to your inquiry!
Your acuraLine-Team!
#highpressure #ped #sievebasket #development #adregulations #microfilter #performance #environmentalism
|
Products
I Stainless-steel-sieve-filter / shift-filter -systems
2017-03-09 |
|
|
|
Stainless-steel-sieve-filter
/ shift-filter -systems
With our standard series SF or SF-IL we equip tank protection systems as well Cooling water treatment successfully.
These stations can optional be equipped with magnetic separators.
Your acuraLine-Team!
#sievebasketfilter #247 #water #magneticseparator #filtrationtechnology #coolingwater #environmentalism
|
|
|
