Description
|

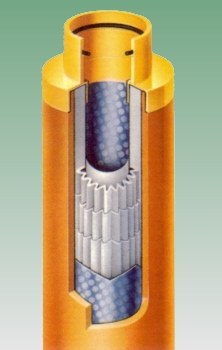

The acuraAir ARS range of filter elements in our compressed air series are
constructed using multiple filter layers, each of which is used for a
specific function. The contaminated air (travelling throug the cartridge
from inside to out) first passes a pre-filtration layer of resin
impregnated cellulose fibres, where particles greater then 5 µm retained.
The use of resin for impregnation guarantees the consistent high
strength of the filter material, even in the presence of water.
The air then passes through the second filtration layer, which consists
of borosilicate microfibres. This allows the capture of particles with
sizes down to 0.01 micron and the formation of condensate droplets,
which are conveyed to the outer coalescing layers of the cartridge.
The outer barrier collects the separated droplets of water and oil,
allowing them to run down to the bottom of the cartridge and into the
bowl of the housing assembly. Although the compressed air elements allow
liquids to pass through, the retained solids eventually result in them
becoming blocked.
The pleated construction of our ARS range of filter elements provides a
very high surface area for the retention of the solid particles (approx.
4-5 times when compared to the conventional rolled filter of most
manufacturers), the result is an exceptionally long life and very low
pressure drop for the element. |
|
 |
Filtration Grade RM /RF |
Applications |
|
Particles
Removal |
: |
10 µm / 1 µm |
| Residual Oil |
: |
< 15 ppm / < 8 ppm |
|
Replacement |
: |
at 0,6 bar |
| |
|
|
|
|
Compressed air
pre-filtration : |
| Removal of condensate and solid
particles, protecting air receivers and refrigerant driers. |
|
Pre filter for
the RB & RA grades. |
| After filter collecting dust and
debris generated by Desiccant driers. |
|
|
 |
Filtration Grade RB |
Applications |
| |
|
|
|
Particles
Removal |
: |
1 µm |
| Residual Oil |
: |
< 0,1 ppm |
|
Air Quality to ISO 8573.1 |
: |
Class 2 |
| Clean pressure drop |
: |
60 mbar |
|
Replacement |
: |
at 0,6 bar |
|
|
Oil separation and
compressed air filtration : |
|
Industrial filtration for
general purpose air and pre filter for refrigeration driers. |
| Pre filter for
the RA & CA grades. |
|
Vacuum pump inlet protection
filter. |
| Removal of
particles down to 1 µm, coalesced water and oil (liquid). |
|
Max. remaining oil content of
0.1 ppm at 21°C. |
|
|
 |
Filtration Grade RA |
Applications |
| |
|
|
|
Particles
Removal |
: |
0,01 µm |
| Residual Oil |
: |
< 0,01 ppm |
|
Air Quality to ISO 8573.1 |
: |
Class 1 |
| Clean pressure drop |
: |
80 mbar |
|
Replacement |
: |
at 0,6 bar |
|
|
Oil separation and
precision filtration of compressed air and gases for the
production of : |
|
Adsorption driers. |
| Sophisticated
instrumentation. |
|
Spray paint plants. |
| Electronisc,
food & textiles industries. |
|
Removal of particles down to
0.01 µm including oil & water aerosols, which provides a max.
remaining oil content of < 0,01 mg/m³ at 21°C. |
|
|
 |
Filtration Grade CA |
Applications |
| |
|
|
|
Residual Oil |
: |
< 0,003 ppm |
| Air Quality to ISO 8573.1 |
: |
Class 1 |
|
Clean pressure
drop |
: |
140 mbar |
| Replacement |
: |
at 1000 h |
|
|
Elimination of
odours and vapours from the compressed air : |
|
Always to be preceded by the RA
grade. |
| Compressed air
for food & beverage |
|
Compressed air for
pharmaceutical |
| Compressed air
for process air, textiles, electronics |
|
Removal of oil vapour and
hydrocarbons, which provides a max. remaining oil content of <
0,003 mg/m³ at 21°C. |
|
|
ORDERING INFORMATIONS |
|
Filter Type |
|
Element Size |
|
Filtration Grade |
|
ARS |
- |
30 |
- |
q |
| ARS |
- |
60 |
- |
q |
|
ARS |
- |
100 |
- |
q |
| ARS |
- |
290 |
- |
q |
|
ARS |
- |
460 |
- |
q |
| ARS |
- |
610 |
- |
q |
|
ARS |
- |
930 |
- |
q |
| ARS |
- |
1050 |
- |
q |
|
